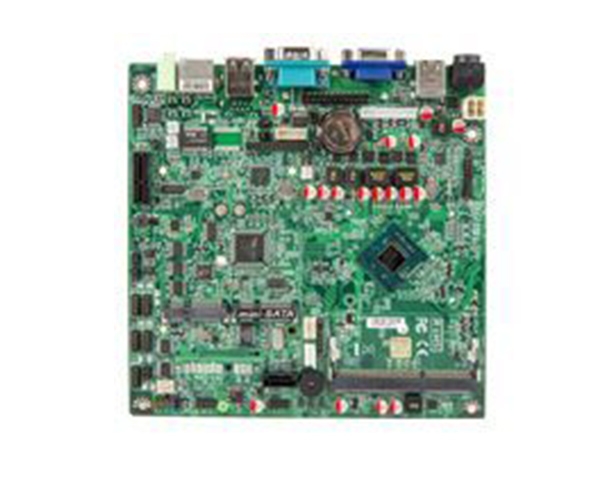

SYS86366VGGA-BT
產(chǎn)品規(guī)格
|
CPU |
J1900(4C/4T) |
||
|
Frequency |
2GHz |
||
|
Burst Frequency |
2.42GHz |
||
|
TDP |
10W |
||
|
BIOS |
AMI UEFI |
||
|
DRAM |
Technology |
DDR3L 1333MHz |
|
|
Capacity |
Up to 8GB |
||
|
Socket |
1 x 204-Pin SO-DIMM Slot |
||
|
Display |
Graphics |
Intel HD Graphics |
|
|
Graphics Memory |
Share System memory up to 1.7GB SDRAM |
||
|
VGA |
1 , Up to 2560 x 1600 Resolution |
||
|
HDMI |
1, Up to 1920 x 1080 Resolution |
||
|
LVDS |
24bit Dual Channel,Up to 1920 x 1080 Resolution |
||
|
Multiple Display |
Two Independent Display |
||
|
LAN |
2 x Realtek 8111G Gigabit LAN |
||
|
Audio |
Realtek ALC887 with Line-out/Mic-In |
||
|
Watchdog |
1~255 Level Watchdog Times |
||
|
Storage |
SATA |
1 x SATA2.0 (3Gb/s) |
|
|
mSATA |
1 (Full-Size) |
||
|
I/O |
COM Port |
6 x RS232 (COM2 Support RS232/422/485) |
|
|
LPT |
1 (Pin-Header) |
||
|
USB |
1 x USB3.0 + 5 x USB2.0 |
||
|
GPIO |
4 x In , 4-Out |
||
|
PS/2 |
1 (Pin-Header) |
||
|
Expansion Slot |
PCI-E 1X |
1 |
|
|
SIM |
1 |
||
|
Mini PCIe |
1 (Full-Size) |
||
|
Power |
DC-In |
DC 12V DC Power In |
|
|
DC-Out |
Support 5V/12V Out for 2.5”or 3.5”HDD |
||
|
Form Factor |
170mm x 170mm (Mini-ITX) |
||
|
Environment |
Operation Temp |
-10~70℃ |
|
|
Storage Temp |
-20~80℃ |
||
|
Certification |
EMC |
CE / FCC |
|
|
O.S |
Windows 7 32/64-Bit (Pro/WES7)/Windows 8.1 64-Bit/Linux Kernel 3.0+ |
||
