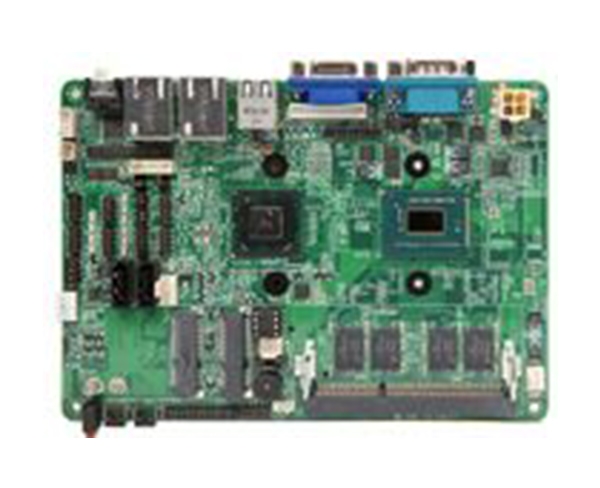

LD-1037U-2N
>> System
Processor Onboard Intel 1037U (1.8GHz,2C/2T,17W) Processor (Ivy bridge Core)
Chipset Intel NM70 PCH
DRAM 1 x 204pin SO-DIMM DDR3 1333/1600MHz up to 4GB
Onboard 2GB DDR3 1600MHz Memory
BIOS AMI uEFI BIOS
Power Supply DC 12V power Input
Watchdog Watchdog timer function
Dimension 168mm x 120mm
>> I/O Ports
HDD 2 x SATA2.0 Port
SSD 1 x mSATA Connector
Serial Port 5 x RS232 + 1 x RS232/422/485
Parallel 1 x LPT port
Audio Realtek ALC887 HD Audio Codec
LAN 2 x Realtek 8111G PCI-E Gigabit controller
USB 6 x USB2.0
Digital I/O 4-In, 4-Out
Expansion 1 x Mini PCIe Expansion slots (Half Size)
>> Display
Graphics Intel HD Graphic Integrated with CPU
HDMI Up to 1920 x 1200@ 60Hz maximum resolution
VGA Up to 2048 x 1536@ 75Hz maximum resolution
LVDS 24bit Dual channel LVDS，Resolution up to 1920 x 1200@ 60Hz
>> Environment
Operation Temperature 0°~60°C
Humidity 10~90%
