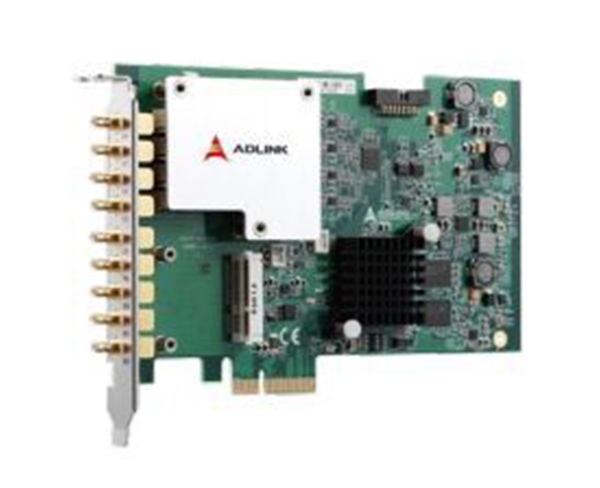

PCIe-9834
Features
● Up to 80 MS/s sampling
● 4 simultaneous analog inputs
● High resolution 12-bit ADC (PCIe-9814)/ 16-bit ADC (PCIe-9834)
● Up to 40 MHz bandwidth for analog input
● 1 GB onboard storage memory
● Programmable input voltage range of ±0.5V, ±1V, ±5V, or ±10V
● Scatter-Gather DMA data transfer for high speed data streaming
● Provide 10 or 20 MHz digital onboard filter (FPGA)
● Provide PLL module for precise synchronization (PCIe-9814P/PCIe-9834P only)
● Support for: ? One external digital trigger input ? One external clock input ? Three SDI inputs(PCIe-9814/9814P only)
● Full auto-calibration
